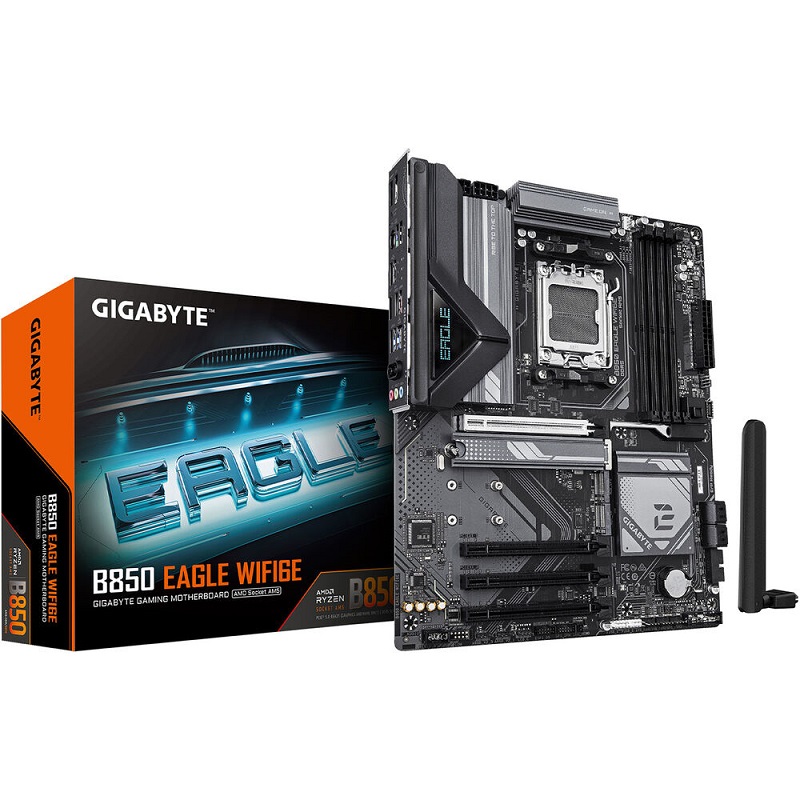

Gigabyte B850 EAGLE WIFI6E

Procesorsko ležište (socket): AMD® AM5
Čipset: AMD® B850
Tip memorije: DDR5
Memorijski slotovi: 4x DDR5
Podržane memorije: do 8200(O.C)
Maksimalna ukupna memorija: 256GB
4x SATA 6Gb/s
RAID 0 1 10
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs
LAN: Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Intel® Wi-Fi 6E AX210 (PCB rev. 1.0)
Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.1)
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.3
Realtek® Audio CODEC, 7.1 High Definition Audio
1 x USB Type-C® port, with USB 3.2 Gen 1 support
2 x USB 3.2 Gen 2 Type-A ports (red)
2 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
Format: ATX Form Factor
