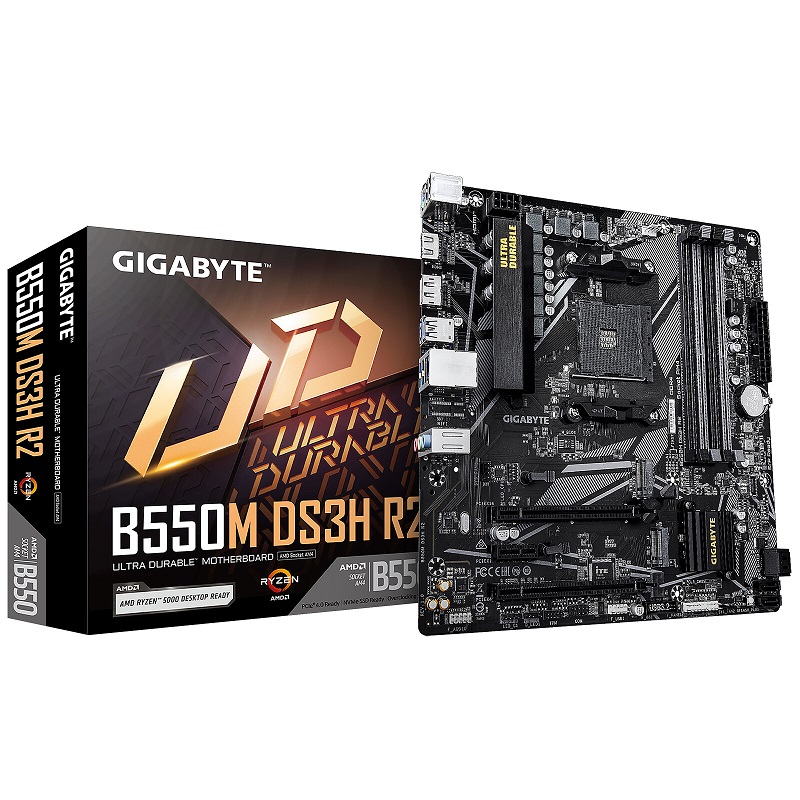

Gigabyte B550M DS3H R2

Procesorsko ležište (socket): AMD® AM4
Čipset: AMD® B550
Tip memorije: DDR4
Memorijski slotovi: 4x DDR4
Podržane memorije: 4733MHz (O.C.)
Maksimalna ukupna memorija: 128GB
4x SATA 6Gb/s
RAID 0 1 10
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs:
AMD Ryzen™ 5000/3000 Series Processors support SATA and PCIe 4.0×4/x2 SSDs
AMD Ryzen™ 5000 G/4000 G/3000 G Series Processors support SATA and PCIe 3.0 x4/x2 SSDs
1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 SATA and PCIe 3.0 x2 SSDs
1x Realtek® GbE LAN chip (1000 Mbit/100 Mbit)
Audio: Realtek® ALC1220 CODEC
4 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
Format: Micro ATX Form Factor
