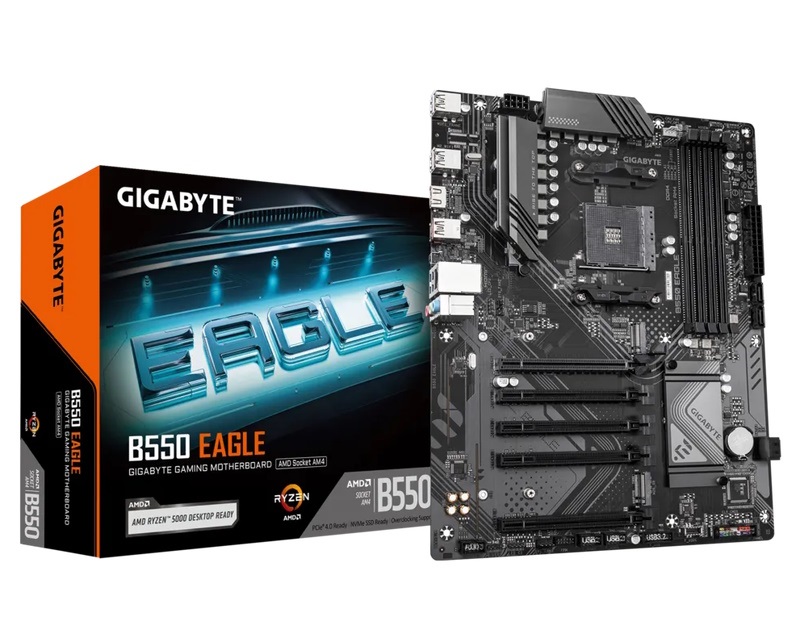

Gigabyte B550 EAGLE

Procesorsko ležište (socket): AMD® AM4
Čipset: AMD® B550
Tip memorije: DDR4
Memorijski slotovi: 4x DDR4
Podržane memorije: do 3200MHz
Maksimalna ukupna memorija: 128GB
4x SATA 6Gb/s
RAID 0 1 10
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
AMD Ryzen™ 5000/3000 Series Processors support SATA and PCIe 4.0×4/x2 SSDs
AMD Ryzen™ 5000 G/4000 G/3000 G Series Processors support SATA and PCIe 3.0 x4/x2 SSDs
1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 3.0 x4/x2 SSDs
Realtek® GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)
Realtek® Audio CODEC 7.1-channel, High Definition Audio
1 x USB Type-C® port, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 2 Type-A (Note)/USB 3.2 Gen 1 port (red)
2 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
Format: ATX Form Factor
